Industrial Double Sided Tape

PE Foam Double Sided Tape

PE foam double sided tape is used for mounting, cushioning, sealing, and light gap compensation on plastics, glass, metals, and painted parts. ChenTao Tape supports custom thickness selection together with slit rolls, sheets, and die-cut converting for industrial assembly projects.

Foam Core Support Helps absorb slight unevenness while adding cushioning and light sealing support.
Flexible Supply Available as jumbo rolls, slit rolls, sheets, pads, and die-cut parts.
Assembly Use Suitable for signage, trims, panels, and general industrial mounting applications.
Get a Free Quote Check Specifications

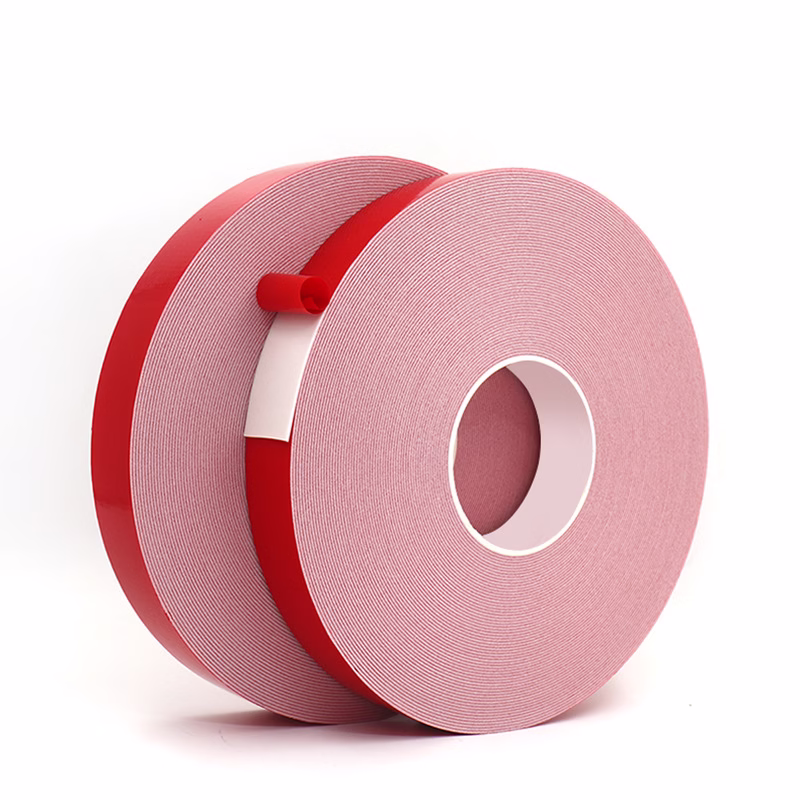

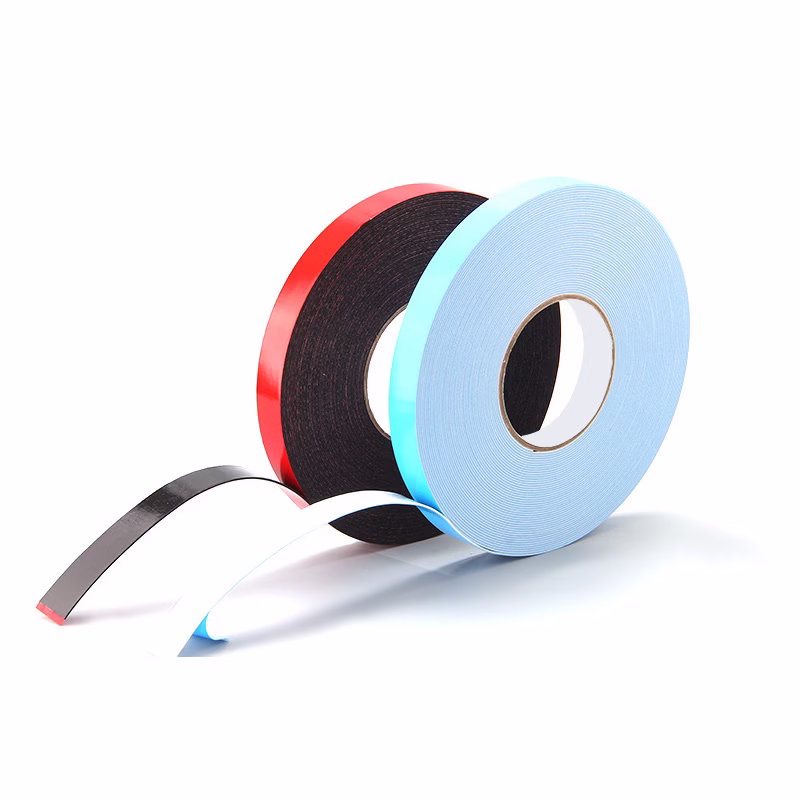

PE foam double sided tape roll product image

Quick Decision Strip

Key screening data for engineers, buyers, and converting projects.

Base Material Closed-Cell PE Foam Flexible foam core for cushioning, mounting support, and light gap compensation.
Adhesive Type Acrylic Adhesive Suitable for general industrial bonding, trim attachment, and assembly use.
Thickness 0.15 mm – 3.0 mm Reference range by grade; custom thickness selection available.
Temperature 80°C Long-term / 140°C Short-term Typical reference range for project screening and preliminary matching.
Main Uses Mounting, Sealing, Cushioning Common for trims, signs, panels, glass parts, and component fixing.
Supply Format Rolls / Sheets / Die-Cuts Slitting, lamination, pad cutting, and OEM converting support available.

Product Overview

Double sided PE foam tape is designed for mounting and bonding where light cushioning, sealing, and surface compensation are needed. It is commonly used on plastics, metals, glass, and painted parts in signage, trim attachment, and panel assembly. ChenTao Tape can supply multiple thickness grades together with slit roll, sheet, pad, and die-cut formats.

Key Advantages

Built around real assembly value rather than generic product claims.

Surface Compensation

The PE foam core helps bridge slight gaps and unevenness, improving contact on practical assembly surfaces.

Cushioning and Sealing

Foam construction adds vibration reduction, compression support, and light sealing in one bonding layer.

Flexible Thickness Choice

Different thickness grades help balance bonding strength, gap filling, and part fit for different projects.

Converting Compatibility

Suitable for slitting, sheet supply, pad cutting, and die-cut processing for OEM and industrial projects.

Typical Applications

A suitable option for projects that need mounting, cushioning, light sealing, or surface compensation.

PE foam tape typical industrial application image

Sign and Display Mounting

Used for lightweight signs, panels, and display parts where cushioning and clean mounting are needed.

Trim and Decorative Parts

Suitable for interior trims, nameplates, and cover parts that require conformable foam bonding support.

Glass and Plastic Assembly

Helps bond smooth substrates while adding a light buffer layer between mating parts.

Panel Fixing and Spacing

Useful where slight gap filling, vibration reduction, or compression support is needed in assembly.

Appliance and Electronic Parts

Can be converted into pads or die-cuts for insulation support, mounting, and light sealing points.

General OEM Converting

Often supplied in slit rolls, sheets, or die-cut formats for production-line installation efficiency.

Technical Specifications

Reference parameters for initial product matching and inquiry communication.

Request Project Matching
Base Material Polyethylene Foam (PE Foam)
Adhesive Type Acrylic Adhesive
Total Thickness 0.15 mm – 3.0 mm (reference range, by grade)
Jumbo Width 1030 mm, further slitting available upon request
Roll Length 33 m / 50 m / Custom Length
Foam Color Black / White
Bond Strength 25–30 N/cm² (reference value, may vary by construction and surface)
Long-term Temperature 80°C
Short-term Temperature 140°C
Converted Format Slit Rolls / Sheets / Pads / Die-Cut Parts

Note: The values above are for reference and initial project screening. Final recommendation should be confirmed according to substrate, surface energy, working temperature, load condition, and required converting format.

Customization Options

Supply can be adjusted according to material stack, converting process, and installation format.

Material & Construction

  • Different thickness grades for bonding, cushioning, and spacing needs
  • Black or white foam options
  • Construction matching by application and substrate

Roll Supply Options

  • Jumbo rolls for converting use
  • Custom slit roll width and roll length
  • Project-based packing support

Converted Formats

  • Sheets, pads, kiss-cut pieces, and die-cut parts
  • Lamination and converting integration support
  • Format matching for manual or line-side installation

Project Support

  • Application-based thickness recommendation
  • Sample support for evaluation and trial fitting
  • OEM and industrial converting cooperation

FAQ

Common questions from buyers, engineers, and converting projects.

What is PE foam double sided tape typically used for?

It is commonly used for mounting, cushioning, sealing, and light gap filling in signs, trims, panels, glass parts, and general industrial assemblies.

Can PE foam tape be used on slightly uneven surfaces?

Yes. The foam core helps compensate for slight surface irregularities and improves contact compared with flat film tapes, especially where cushioning is also needed.

What thickness of PE foam tape should I choose?

Thickness depends on gap size, substrate condition, compression requirement, and load. For project matching, it is better to confirm the substrate, part structure, and target use before final selection.

Do you support slit rolls, sheets, or die-cut parts?

Yes. ChenTao Tape can supply PE foam tape as jumbo rolls, custom slit rolls, sheets, pads, and die-cut formats according to converting and assembly needs.

Can samples be provided for testing?

Yes. Samples can be arranged for preliminary evaluation, thickness comparison, and application testing before mass supply.

Is the temperature range fixed for every PE foam tape grade?

No. The temperature values shown on this page are reference values for screening. Final performance can vary by thickness, adhesive construction, substrate, and working condition.
