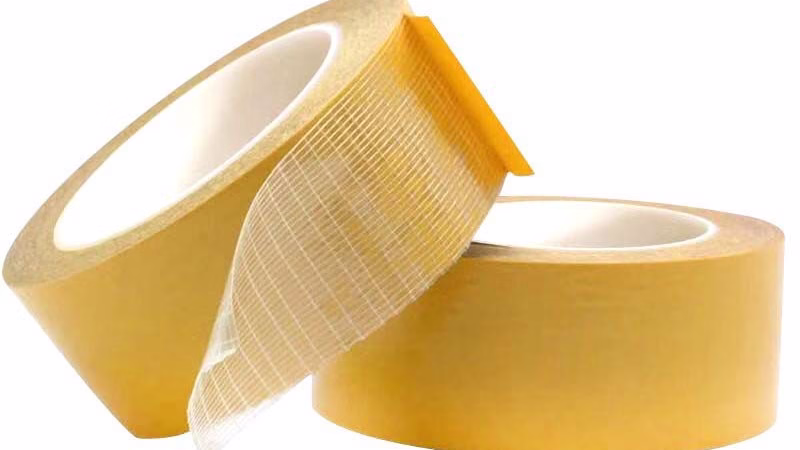

Fiberglass mesh double sided tape Manufacturer
ChenTao’s fiberglass double-sided tapes have good adhesion and are suitable for applications such as exterior wall panel installation, carpet fixing, tile reinforcement, automotive interior parts assembly and HVAC system sealing. The product supports custom thickness, is UL/ROHS certified, and provides bulk pricing. Request samples now to get OEM support.
Fiberglass mesh double sided tape Introduction

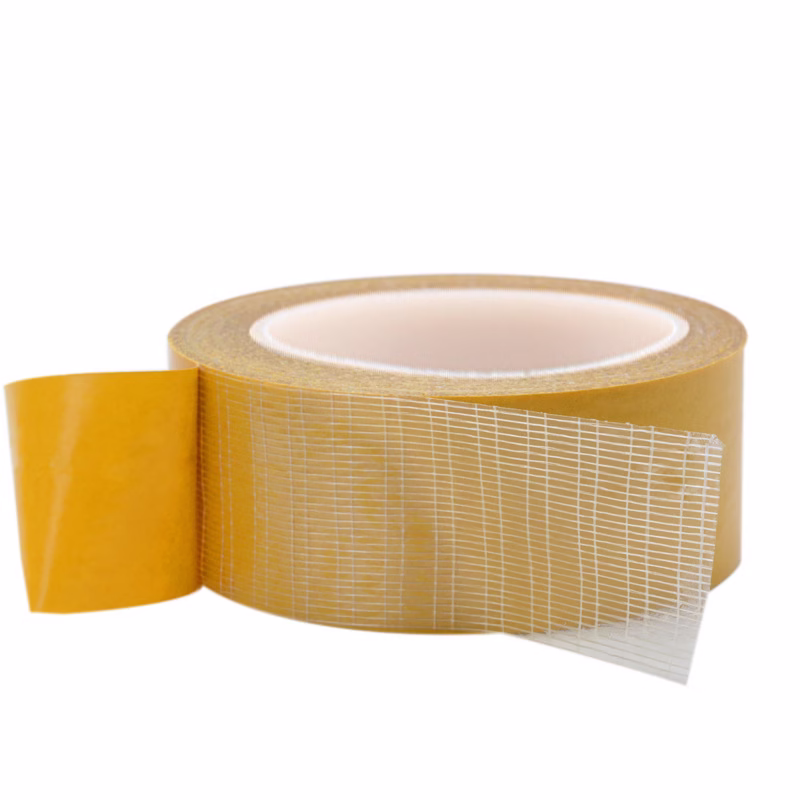

Crafted for heavy-duty bonding and reinforcement, fiberglass mesh double-sided adhesive tape integrates a woven fiberglass mesh core embedded with high-strength acrylic or rubber-based adhesives on both sides. This unique structure delivers exceptional tensile strength, tear resistance, and dimensional stability, ideal for bonding uneven or heavy substrates like stone, ceramics, metals, and composites in construction, automotive, and industrial settings. The fiberglass mesh resists stretching, temperature fluctuations (-30°C to 120°C+), and moisture, ensuring durable adhesion for applications such as exterior façade panel mounting, tile reinforcement, automotive trim assembly, and HVAC system sealing. Its grid design allows airflow and slight flexibility, preventing stress buildup while maintaining a rigid bond line. Resistant to UV degradation, solvents, and vibration, this tape replaces mechanical fasteners for seamless, lightweight installations. Available in varying mesh densities, adhesive strengths, and thicknesses, it complies with fire-retardant and industrial safety standards, offering a reliable solution for load-bearing structural bonding in harsh environments.
Technical Specifications
| Item | Specification |
|---|---|
| Thickness | 0.16mm-0.33mm (±0.1mm) |
| Width | 1020mm (Customizable) |
| Roll Length | 50m / Custom Length |
| Basic Materials | Fiberglass |
| Adhesive Type | Hot Melt |
| Adhesive Color | Clear |
| Liner Color | Yellow / White |
| Peel Adhesion (N/25mm) | ≥22-26 |
| Temperature Resistance(℃) | -20℃-120℃ |
| Holding Power(Hr) | >24 |
| Die-Cutting | Any Shape | Any Size |
Note: All the above data are just for reference, all data might change without notices or updates, please contact our sales team to confirm all details Via Whatsapp or Email.
Optional (OEM / Customized)
- Length
- Width
- Core material and diameter
- Shape(die-cutting)
- Package(Printed / OEM)
Optional (OEM / Customized)
- Length
- Width
- Core material and diameter
- Shape(die-cutting)
- Package(Printed / OEM)
