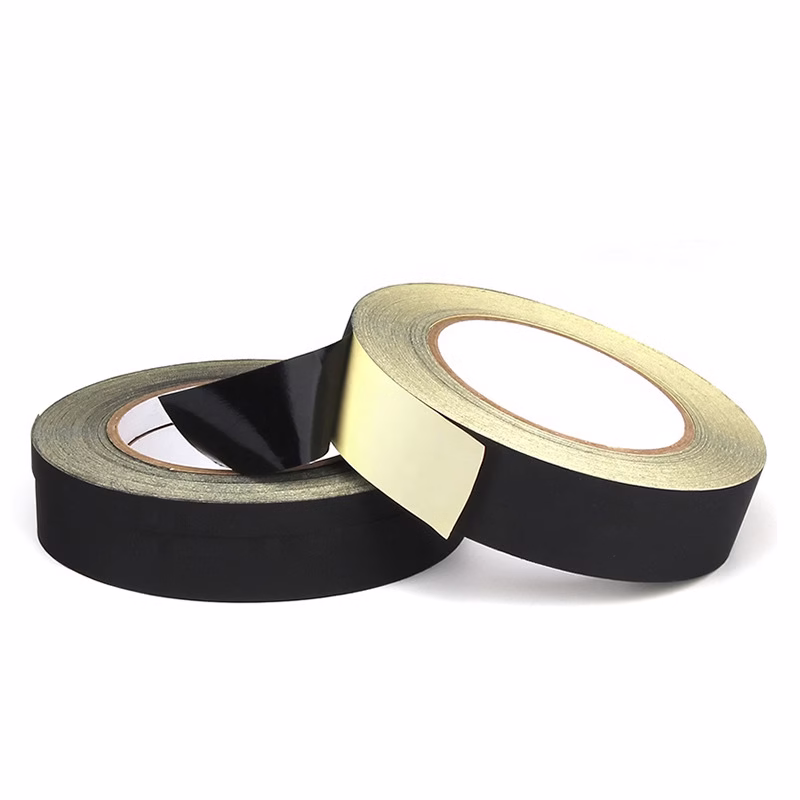

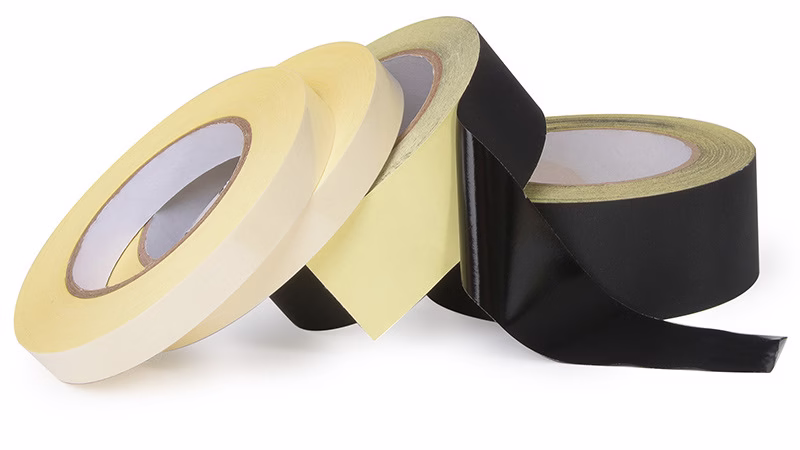

Acetate cloth tape Manufacturer
Chentao’s acetate cloth tape has good adhesion and is suitable for automotive wiring harness wrapping, home appliance repair and industrial equipment requiring durable electrical insulation. This product supports custom thickness, is UL/ROHS certified, and offers bulk pricing. Request samples now to get OEM support.
Acetate cloth tape Introduction
A high-temperature, flame-retardant insulating tape, Acetate Fabric Tape combines a robust acetate fiber cloth backing with a pressure-sensitive rubber or silicone adhesive, engineered for continuous use up to 130°C (Class B insulation) and short-term peak resistance to 155°C. Ideal for motor winding, transformer insulation, and electrical coil binding, it provides excellent dielectric strength (≥3 kV/mm), abrasion resistance, and compliance with UL 1441 flame-retardant standards. The tape’s flexible, non-slip design adheres securely to curved surfaces, wires, and laminated cores while resisting oils, solvents, and humidity. Suitable for automotive harness wrapping, appliance repair, and industrial equipment requiring durable electrical insulation, it leaves minimal residue upon removal. RoHS/REACH compliant and tested per ASTM D1000 for tensile strength.
Technical Specifications
| Item | Specification |
|---|---|
| Thickness | 0.2mm / 0.22mm / 0.24mm |
| Width | Cutting any width |
| Roll Length | 50m / Custom Length |
| Basic Materials | acetate cloth |
| Adhesive Type | Rubber / Acrylic |
| Color | Black / White |
| Adhesion to Steel (N/inch) | >7 |
| Temperature Resistance(℃) | -20℃-120℃ |
| Holding Power(Hr) | ＞48 |
| Die-Cutting | Any Shape | Any Size |
Note: All the above data are just for reference, all data might change without notices or updates, please contact our sales team to confirm all details Via Whatsapp or Email.
Optional (OEM / Customized)
- Length
- Width
- Core material and diameter
- Shape(die-cutting)
- Package(Printed / OEM)
other Insulating Tape
Globally accepted, approved by manufacturers and wholesalers
Compliance & Certifications
Contact ChenTao Tapes
Feel free to contact the ChenTao Tapes team via WhatsApp, WeChat, Email, or Phone Calls for any questions you may have,
our well-trained operation team is ready to give you the answers you need.
